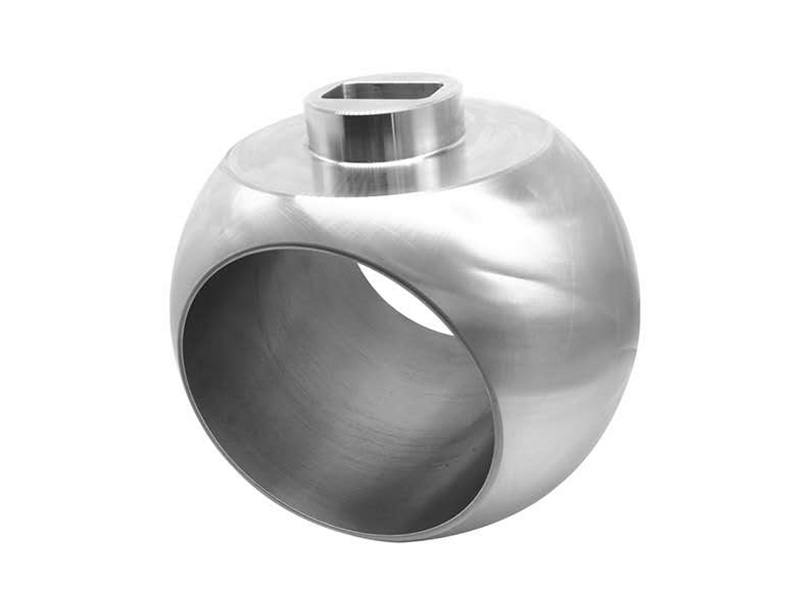

Trunnion-Ball

Type:

Floating Ball, Trunnion Ball,3-way Ball, V-type Ball,Stem Ball,Special Shape Ball, Metal to Metal Ball& Seat Ring Kits.

Product Size:

3/8,,-48"(DN10-DN1200)

Pressure Range：

Class 150-2500(PN16-PN420)

Main Material:

ASTM A105, A350 LF2, A182 F304(L)/F316(L)/F6A/F51 /F53/F55, A564 630(17-4PH), Inconel625,lncoloy825, Inconel718,Monel400/K-500, Hastelloy and etc.

Coating&Cladding:

ENP, Chrome Plating, Tungsten Carbide, Chrome Carbide, Stellite, Inconel overlay etc.,

RoughneSS：Ra0.2-Ra0.4

RoundneSS：3/8"-32,: 0.015mm 32,,-48": 0.02mm

Coaxiality：3/8」32: 0.02mm 32"-48": 0.03mm
